SQL Server 2005 - Merge Replication Step by Step Procedure

  • Introduction

Replication is a set of technologies for copying and distributing data and database objects from one database to another and then synchronizing between databases to maintain consistency. Using replication, you can distribute data to different locations and to remote or mobile users over local and wide area networks, dial-up connections, wireless connections, and the Internet.

Replication is the process of sharing data between databases in different locations. Using replication, we can create copies of the database and share the copy with different users so that they can make changes to their local copy of database and later synchronize the changes to the source database.

Terminologies before getting started:

Microsoft SQL Server 2000 supports the following types of replication

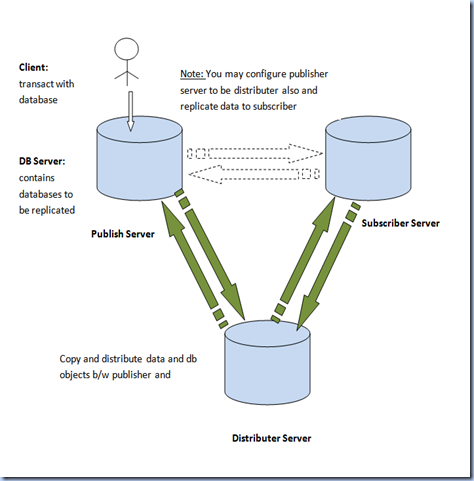

Publisher is a server that makes the data available for subscription to other servers. In addition to that, publisher also identifies what data has changed at the subscriber during the synchronizing process. Publisher contains publication(s).

Subscriber is a server that receives and maintains the published data. Modifications to the data at subscriber can be propagated back to the publisher.

Distributor is the server that manages the flow of data through the replication system. Two types of distributors are present, one is remote distributor and the other one local distributor. Remote distributor is separate from publisher and is configured as distributor for replication. Local distributor is a server that is configured as publisher and distributor.

Agents are the processes that are responsible for copying and distributing data between publisher and subscriber. There are different types of agents supporting different types of replication.

Snapshot Agent is an executable file that prepares snapshot files containing schema and data of published tables and database objects, stores the files in the snapshot folder, and records synchronization jobs in the distribution database.

An article can be any database object, like Tables (Column filtered or Row filtered), Views, Indexed views, Stored Procedures, and User defined functions.

Publication is a collection of articles.

Subscription is a request for copy of data or database objects to be replicated.


Replication Types

Microsoft SQL Server 2005 supports the following types of replication:

  • Snapshot Replication
  • Transactional Replication
  • Merge Replication
Snapshot Replication
    • Snapshot replication is also known as static replication. Snapshot replication copies and distributes data and database objects exactly as they appear at the current moment in time.
    • Subscribers are updated with complete modified data and not by individual transactions, and are not continuous in nature.
    • This type is mostly used when the amount of data to be replicated is small and data/DB objects are static or does not change frequently.
Transactional Replication
    • Transactional replication is also known as dynamic replication. In transactional replication, modifications to the publication at the publisher are propagated to the subscriber incrementally.
    • Publisher and the subscriber are always in synchronization and should always be connected.
    • This type is mostly used when subscribers always need the latest data for processing.
Merge replication

It allows making autonomous changes to replicated data on the Publisher and on the Subscriber. With merge replication, SQL Server captures all incremental data changes in the source and in the target databases, and reconciles conflicts according to rules you configure or using a custom resolver you create. Merge replication is best used when you want to support autonomous changes on the replicated data on the Publisher and on the Subscriber.

Replication agents involved in merge replication are snapshot agent and merge agent.

Implement merge replication if, changes are made constantly at the publisher and subscribing servers, and must be merged in the end.

By default, the publisher wins all conflicts that it has with subscribers because it has the highest priority. Conflict resolver can be customized

Before starting the replication process:

assume that we have 2 server:

  • EGYPT-AEID: is the publisher server ( contains HRatPublisher )
  • SPS: is the subscriber server ( contains HRatSubscriber )
    use SQL server Authentication mode for login

on the publisher database i created table: Employees with fields of (ID, Name, Salary) to replicate its data to the subscriber server.

i will use publisher as subscriber also

Note: Check that SQL Server Agent is running on the publisher and the subscriber


  1. Open SQL Server Management Studio and login with SQL Server Authentication to configure Publishing, Subscribers, and Distribution


a- Configure the appropriate server as publisher or distributor.


b- Enable the appropriate database for merge replication

pub db

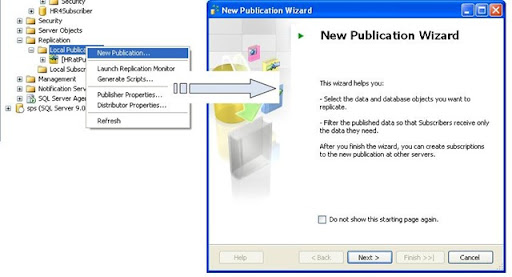

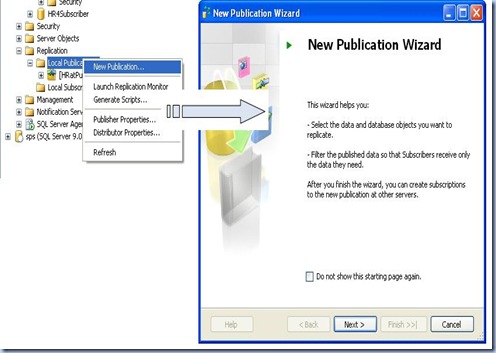

2- Create new local publication from DB-Server --> Replication --> Local Publications --> Right Click --> New Pub


then choose the database that contains the data or objects you want to replicate


then choose the replication type and then specify the SQL server versions that will be used by subscribers to that publication like SQL Server 2005, SQL mobile Edition, SQL for Win CE ....etc


after that manage the replication articles, data and db objects, by choosing objects to be replicated

Note: you can manage the replication properties for selected objects


Then add filters to published tables to optimize performance and then configure the snapshot agent



and configure the security for snapshot agent


finally rename the publication and click finish


3- create a new subscription for the created "MyPublication01" Publication by right click on MyPublication01 --> New Subscription

that to configure the "Merge Agent" for replication on the subscriber database



then choose one or more subscriber databases. you can add new SQL Server subscribers


then specify the Merge Agent security as mentioned above on "Agent Snapshot"

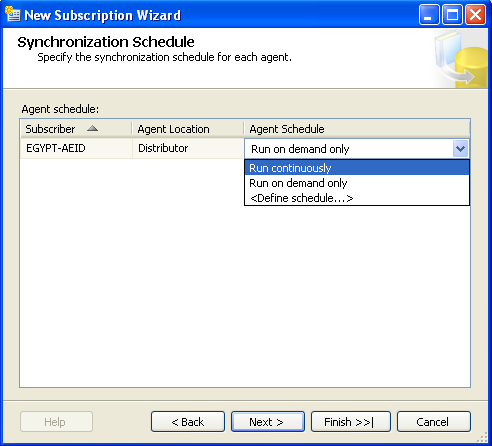

and so specify the synchronization schedule for each agent.


  • Run Continuously: add schedule times to be auto run continuously
  • Run on demand only: manually run the synchronization


and then next up to final step, then click finish

you can check the errors from "Replication Monitor" by right click on Local Replication --> Launch Replication Monitor

Advantages in Replication:

Users can avail the following advantages by using replication process:

  • Users working in different geographic locations can work with their local copy of data thus allowing greater autonomy.
  • Database replication can also supplement your disaster-recovery plans by duplicating the data from a local database server to a remote database server. If the primary server fails, your applications can switch to the replicated copy of the data and continue operations.
  • You can automatically back up a database by keeping a replica on a different computer. Unlike traditional backup methods that prevent users from getting access to a database during backup, replication allows you to continue making changes online.
  • You can replicate a database on additional network servers and reassign users to balance the loads across those servers. You can also give users who need constant access to a database their own replica, thereby reducing the total network traffic.
  • Database-replication logs the selected database transactions to a set of internal replication-management tables, which can then be synchronized to the source database. Database replication is different from file replication, which essentially copies files.
Replication Performance Tuning Tips:
  • By distributing partitions of data to different Subscribers.
  • When running SQL Server replication on a dedicated server, consider setting the minimum memory amount for SQL Server to use from the default value of 0 to a value closer to what SQL Server normally uses.
  • Don’t publish more data than you need. Try to use Row filter and Column filter options wherever possible as explained above.
  • Avoid creating triggers on tables that contain subscribed data.
  • Applications that are updated frequently are not good candidates for database replication.
  • For best performance, avoid replicating columns in your publications that include TEXT, NTEXT or IMAGE data types.

if you have any inquiry about that topic, please don't hesitate to contact me at aes_fci@hotmail.com


Monday, August 18, 2008

Pre-Master Final Project (Reverse Query Processing)


On Sep 2007, I joined faculty of computers and information at Cairo university for achieving master degree on computer science. This year was full study stage for 6 courses which are:

  1. Information System Development Methodologies
  2. Natural Language Processing
  3. Object Oriented Database
  4. Databases Systems
  5. Data Mining
  6. E-Commerce

with these courses there is a final project to pass for master registration.
I started to survey about opened topics on computer science fields like

  • Parallel and Distributed Computing
  • Requirements Engineering
  • Software Engineering
  • Web Based Decision Support Systems
  • Advances in Data and Knowledge Engineering
  • Data Mining and Computer Modeling in Tourisim
  • Health and Biomedical Informatics
  • Multimedia Computing
  • Natural Language Processing
  • Networks and Information Security
  • ....etc

and to continue proofing that TOPIC for my master degree. after surveying about these fields and opened topics on them, I found set of topics that match my hobbies in software engineering like:

  • Reverse Query Processing
  • Morphological Analysis and generation
  • Text and web content mining
  • Model-Driven DSS
  • Radiology structured-reporting
  • Gene sequence Annotation
  • Domain-Specific RE Processes
  • ...etc

after that, I decided to start on Reverse Query Processing under supervision of Dr. Ali El Bastawesy , the following are some notes after finalizing and discussing the project.


Nowadays, there are a lot of techniques used for testing a database management system (DBMS) by generating a set of test databases and then execute queries on top of them. However, for DBMS testing, it would be a big advantage if we can control the input and/or the output (e.g., the cardinality) of each individual operator of a test query for a particular test case. RQP gets a query and a result as input and returns a possible database instance that could have produced that result for that query. RQP also has other applications such as testing the performance of DBMS and debugging SQL queries. There are a number of commercial tools to automatically generate test databases. These tools take a database schema (table layouts plus integrity constraints) and table sizes as input in order to generate new database instances with tuples.

Areas of RQP:

- Database Testing
- Software quality assurance

RQP Applications:

1- Generating Test Databases

The application that started this work is the generation of test databases for regression tests or to test the specification of an application. If the application code is available (e.g., Java or C# with embedded SQL), then the application code can be analyzed using data flow analysis in order to find all code paths. Based on this information, RQP can be applied to the SQL statements which are embedded in the application in order to generate a test database that will provide data for all possible code paths.

For example, consider an application with an if-else block where the if condition relies on the result R of a query Q. Given that query Q and different results R (e.g. one R for each branch of the if-else block), RQP can generate different databases to test all code paths of that application (R can be given by the testers manually or by some code analysis tools

foreach price in SELECT price FROM Product do
if(price>=0 && price<=10)
//do something
else if(price>10) //do something else
end foreach

2- SQL Debugger

3- Program Verification

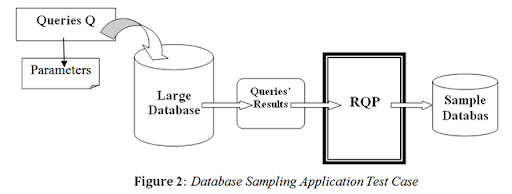

4- Database Sampling, Compression

Some databases are large and query processing might be expensive even if materialization and indexing is used. One requirement might be to provide a compressed, read-only variant of a database that very quickly gives approximate answers to a pre-defined set of parameterized queries


Problem Definition:

The problem of database application testing can be broadly partitioned into the problems of test cases generation, test data preparation and test outcomes verification. Among the three problems, the problem of test cases generation directly affects the effectiveness of testing.

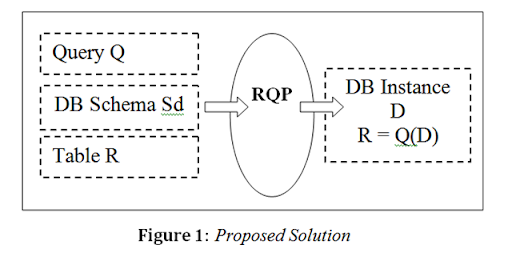

Given an SQL Query Q, the Schema SD of a relational database (including integrity constraints), and a Table R (called RTable), find a database instance D such that: R = Q(D) and D is compliant with SD and its integrity constraints.

prob def

RQP Architecture


Multi Reverse Query Processing:

RQP is not capable to support multiple queries and the corresponding expected results as input. Thus, in [6] we studied the problem of Multi-RQP (or MRQP for short). Unlike RQP, MRQP gets a set of SQL SELECT queries, the corresponding expected query results and a database schema as input and tries to generate one test database that returns the expected results for all the given queries


here, I tried to describe the topic briefly so please don't hesitate to contact me for more information
